LB120-3600A
AUTOMATIC PAPER CUP FORMING MACHINE
Introduction

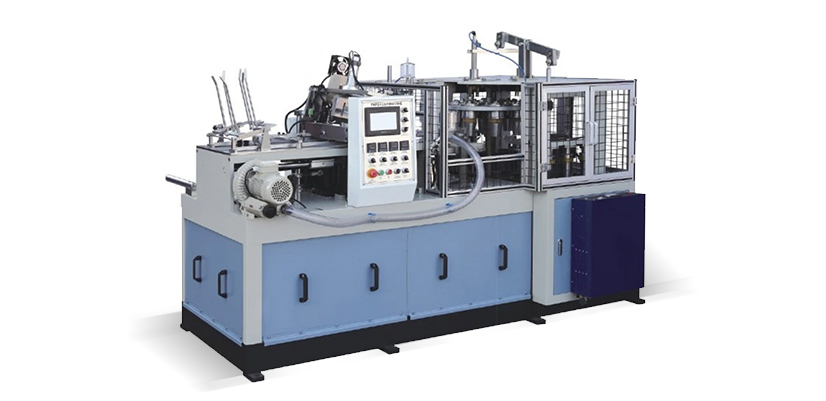

LB120-3600A - Automatic Paper Cup Forming Machine is the latest machine generation for paper cup manufacturing. It is the best choice for making paper cups. It is created based on manufacturing experience and advanced technology from many countries combined. The machine is known to as a pioneer equipment in China. It comes with rectangle tube and channel steel welding structure, which is stronger. It also comes with small deformation and automatic lubrication system, which makes all mechanical parts working much more smoothly. The cup bottom adopts the stretching die which makes the bottom sealing quality better and less leaking percentage. It has PLC control, sensor failure detecting system, and cup bottom paper feeding controlled by servo motor. The bottom paper will be delivered when cup tube comes - otherwise no bottom paper delivery. The machine has safety guard to protect the people working safely.
- Rectangle tube and channel steel welding structure
- Automatic lubrication system
- PLC control
- Sensor failure detecting system
- Cup bottom paper feeding controlled by servo motor
- Safety guard with cams
- 65pcs/min Capacity
- Ultrasonic sealing
- Touch screen control panel
- 2 gear boxes(125-8 and 80 model)
Specification
| Product Model | LB120-3600A |
|---|---|
| Speed | 55-65 pcs/min |
| Raw Material | Single or Double PE Coated Paper |
| Cups Specifications | 6-22 OZ (Mold Exchangeable) |
| Paper Specifications | 160-380 g/m2 |

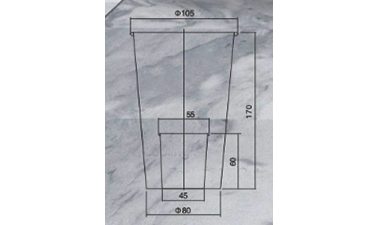

| Paper cup top diameter | 45mm-85mm, 55mm-105mm |
| Paper cup bottom diameter | 35mm-62mm, 45mm-80mm |
| Paper cup height | 35mm-125mm, 60mm-120mm |
| Packing Dimensions | 2730*1460*1800mm (L*W*H) |

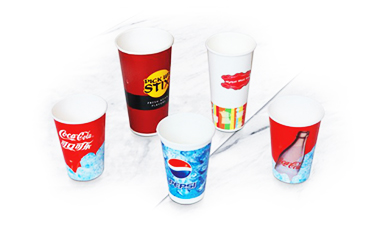

| Cup Use | Round paper cups, drinking, noodle and vending cups ice-cream and food containers |
| Gas source | 0.4m3/min |
| General Power | 9KW |
| Weight | 2200kg |
| Total Power | 380V 50HZ |
