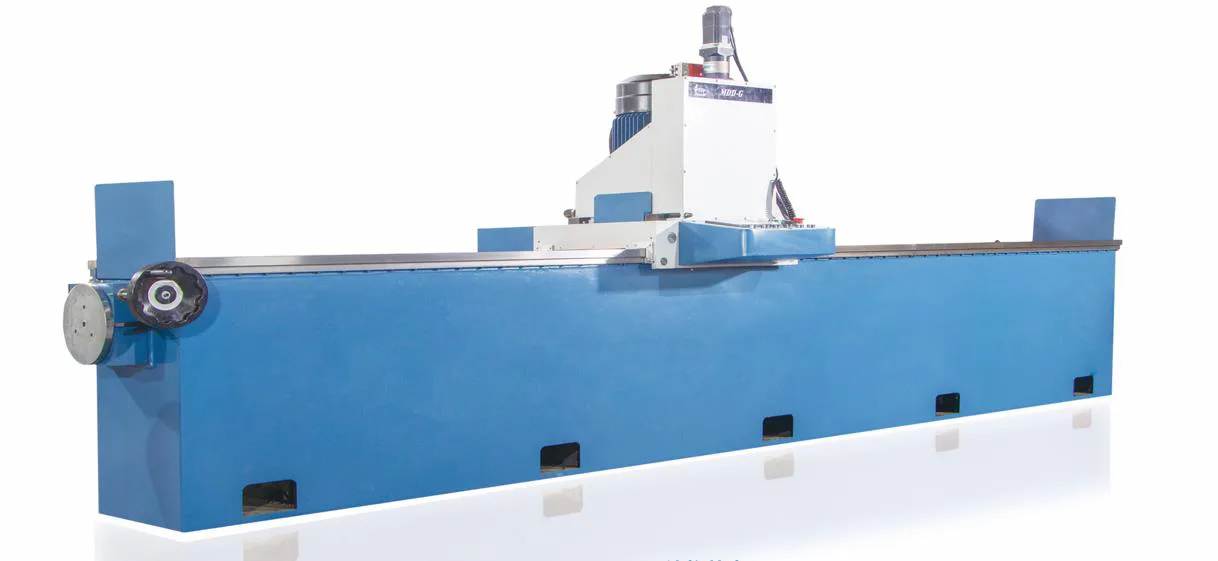

MDD-1800G
PRECISION KNIFE GRINDING MACHINE
Please contact us for more info!
Introduction
High Precision Knife Grinding Machine (MDD-1800G) is widely used to grind the straight knife, such as the paper cutting knife, shearing knife, chipper knife, crushing knife etc. The machine is featured by strong body, easy operation, high grade of configuration, high grade automation, and high feeding precision 0.005---0.10mm.
FEATURES
Machine Body
- The machine body has the function of resisting distortion and elimination of the inner cavity structure, firm structure and compact, after heat treatment to eliminate the internal stress.
Grinding Wheel Feeding
- Precision ball screw rod control the lift of grinding wheel, feeding distance ranging from 0.001—0.10mm.
Guide Rail
- Reciprocating stroke with high precision, high rigidity rectangular guide rail.
Carriage
- Speed controlled by frequency convertor, speed adjustable ranging from 0.02m—20m/min, special speed for cemented carbide knife, high speed steel knife, and ordinary knife.
Magnetic Chuck
- Magnetic chuck (table, bed) to fix the knives, S-shape wire distribution, strong and even magnetic power.
HMI
- HMI adopted to set the main data, such as the horizontal travel length, the feeding method of grinding stone etc.
Electric Components
- International famous brands of electrical components, such as Siemens control modular etc.
Compact
- Small size, stable performance, long service life span.
Specification
| Model | MDD-1800G |
|---|---|
| Max Grinding Length | 1800 mm |
| Max Width | 180 mm |
| Magnetic Chuck (Table) | 1800 mm (L) × 180 mm (W) × 1 piece |
| Vertical Travel of Grinding Head | 200 mm |
| Auto Feeding Depth of Grinding Head | 0.005 mm – 0.10 mm |
| Wheel Size | 250 × 150 × 110 mm |
| Travel Speed of Grinding Head | 1 – 20 m/min |
| Coolant | Coolant comes out in the middle of the grinding wheel / Synthetic cutting fluid |
| Grinding Speed | 1400 rpm |
| Grinding Motor Power | 7.5 kW |
| Side Polishing Motor Power | / |
| Reciprocating Motor Power for Grinding Head | 1.1 kW |
| Cooling Motor Power | 0.125 kW |
| Chuck Method | Copper coils magnetic chuck |
| Edge Straightness of Blade | ≤ ±0.005 mm/m |
| Roughness of Blade Edge | Ra ≤ 0.4 μm |
| Overall Size | 3800 mm × 1050 mm × 1600 mm |
| Weight | Approx. 2500 kg |
