PBS-420
AUTOMATIC SPIRAL BINDING AND PUNCHING MACHINE
Please contact us for more info!
Introduction

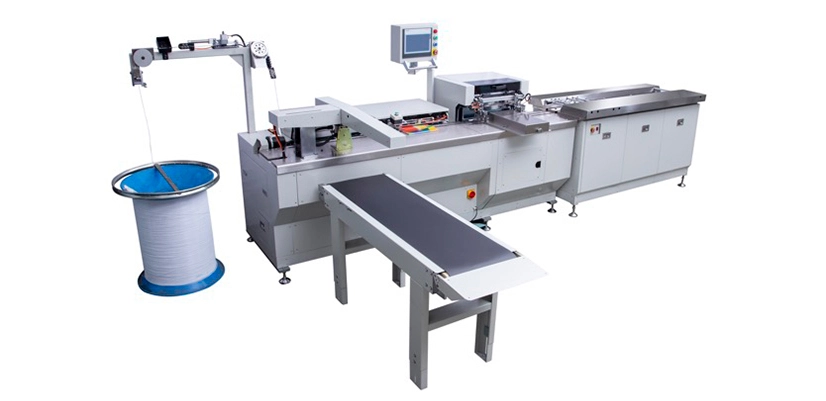

Spiral automatic binding machine PBS 420 is a perfect machine to use for single wire notebook production. It includes paper feeding part, paper hole Punching Part, spiral forming, spiral binding and scissor locking part with book collecting part.
Advantages
- For large-scale productions of spiral book.
- With G type back hook coil lock and L type common lock choice.
- Suitable some notebook (cover binding size bigger than inner paper).
- Max could be used for 14mm thickness notebook.
Specification
| Speed | Up to 1300 /h |
|---|---|
| Air Pressure | 5 - 8 kgf |
| Spiral Diameter | 8 - 20 mm |
| Max. Binding Width | 420 mm |
| Min. Binding Width | 70 mm |
| G Type Back Hook Scissors Range | 10 - 20 mm |
| L Type Common Hook Scissors Range | 8 - 20 mm |
| Spiral Hole Pitch Optional Range | 5, 6, 6.35, 8, 8.47 mm |
| Spiral Diameter (mm) | Wire Diameter (mm) | Aperture (mm) | Aperture (mm) |
|---|---|---|---|
| 8 | 0.7 - 0.8 | Φ 3.0 | 5 |
| 10 | 0.7 - 0.8 | Φ 3.0 | 7 |
| 12 | 0.8 - 0.9 | Φ 3.5 | 9 |
| 14 | 1.0 - 1.1 | Φ 4.0 | 11 |
| 16 | 1.0 - 1.1 | Φ 4.0 | 12 |
| 18 | 1.0 - 1.1 | Φ 4.0 | 14 |
| 20 | 1.1 - 1.2 | Φ 4.0 | 15 |
