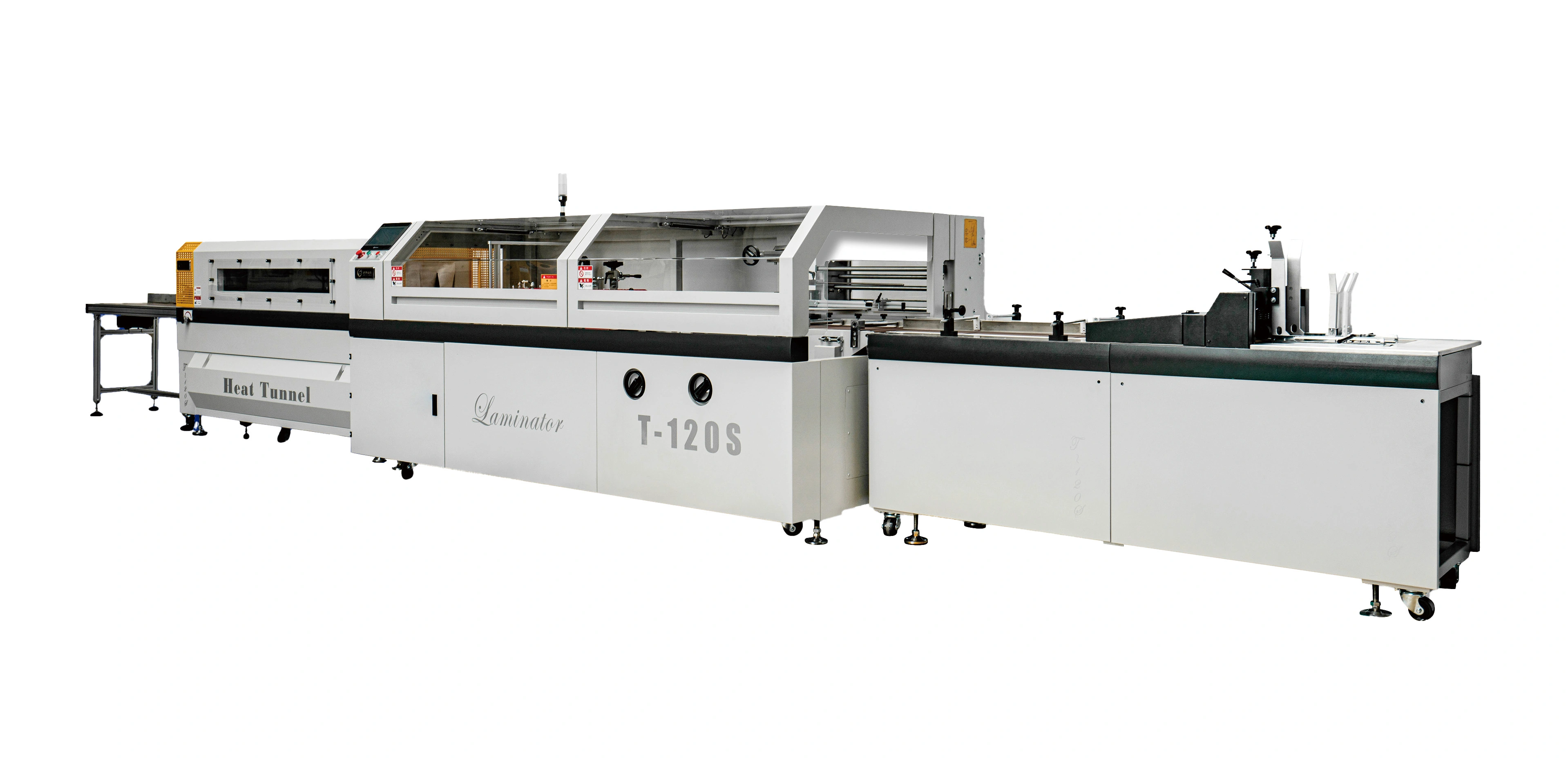

T-120S
AUTO-TRACKING HIGH-SPEED SHRINK WRAPPING MACHINE
Please contact us for more info!
FEATURES
- Belt and push bar feeding conveyor selectable — freely choose the most suitable feeding method for the product.
- Horizontal knife adopts reciprocating cutting; can be freely converted to follow-up cutting or positioning cutting.
- Main conveyor belt achieves automatic expansion and contraction with seamless connection — more suitable for small-sized packaged items.
- Fully servo-controlled system enables one-click startup, interconnection, and mutual control.
- Machine consists of four units: feeding table, automatic sealing and cutting unit, heat circulation shrink tunnel, and automatic collecting table — flexibly arranged on-site.
Specification
| Size of Packages (L) | No limit |
|---|---|
| Size of Packages (W) | 60 – 400 mm |
| Size of Packages (H) | 5 – 200 mm |
| Max. Speed | 120 pcs/min |
| Power | 29 kW |
| Overall Size | 9500 × 1650 × 1430 mm |
| Voltage | 380V |
| Air Pressure | 0.5 MPa |
| Machine Weight | 2600 kg |
Please contact us for sample images!
