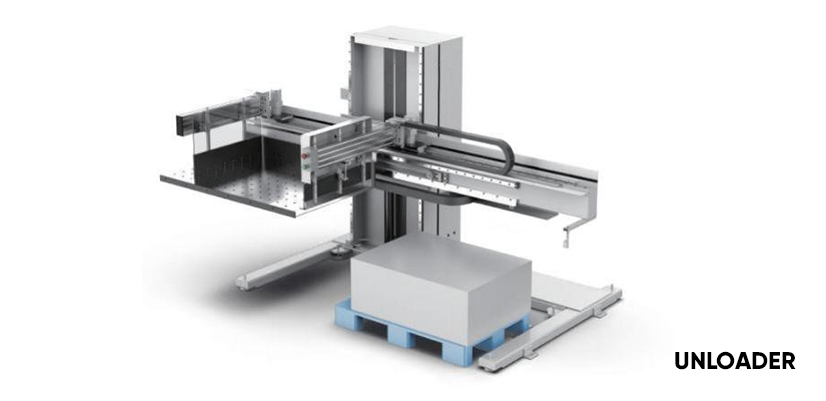

XZ1050F
Unloader
Introduction
The Automatic Unloader series is
equipped with automatic identification of paper
stack size and position, as well as automatic paper feeding and unloading functions. It efficiently
unloads cutting products from the working
table to the designated base quickly and neatly. The entire process of paper feeding and unloading
is accurate and effective, reducing labor
intensity and improving work efficiency.

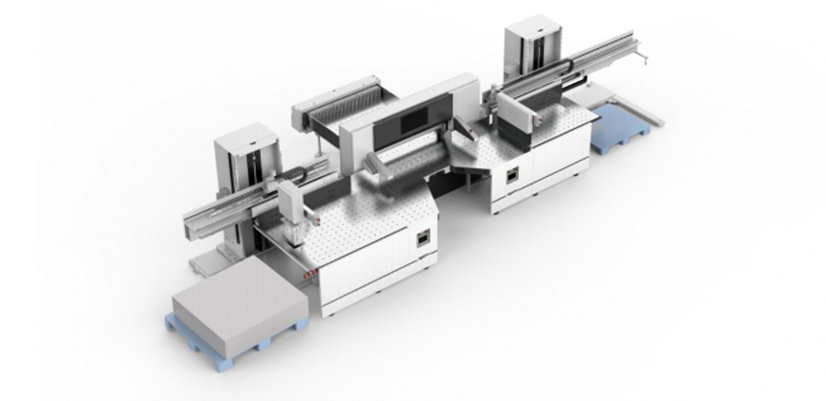

The machine can be placed on the right or left side of the paper cutting machine as desired,
making paper loading during cutting more
convenient. It provides a necessary precondition for future printing or folding processes, saving
time and effort. The automatic pickup
function simplifies the operation.
Specification
| Model | XZ1050F |
|---|---|
| Plate Size (W×L)mm | 940×1500 |
| Max. Paper size (W×L)mm | 900×1300 |
| Min. Paper size (W×L)mm | 300×400 |
| Max. Layer height (with plate) mm | 1600 |
| Max. Layer height mm | 165 |
| Min. table height from the floor mm | 150 |
| Max. Layer weight Kg | 350 |
| Pressure setting MPa | 0.35-0.4 |
| Air Demand MPa | 0.6 |
| Air supply consumption L / min | 3 |
| Rated voltage V | 380/220 |
| Power supply mode | Three-phase five-wire system |
| Gross Power Kw | 4.3 |
| Min. grams of paper g | 50 |
| Unloader time S | 20-35 |
| Net Weight KG | 1850 |
| Gross Weight KG | 2050 |
| Machine Size mm | 3280×1910×2060 |
| Packing Size mm | 3400×2060×2380 |
