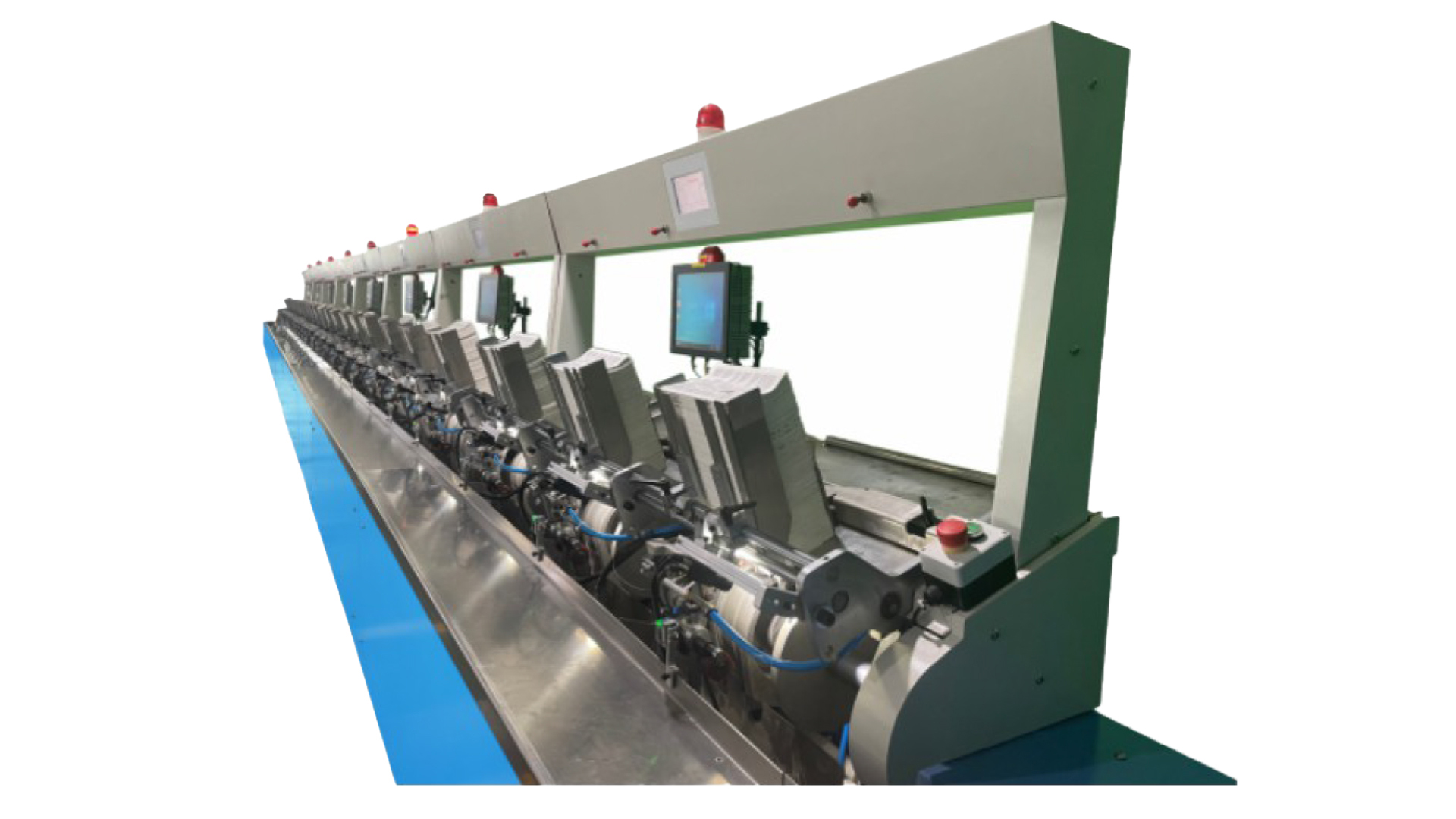

AUSCP PY-6000
MID SPEED COLLATING MACHINE
Introduction

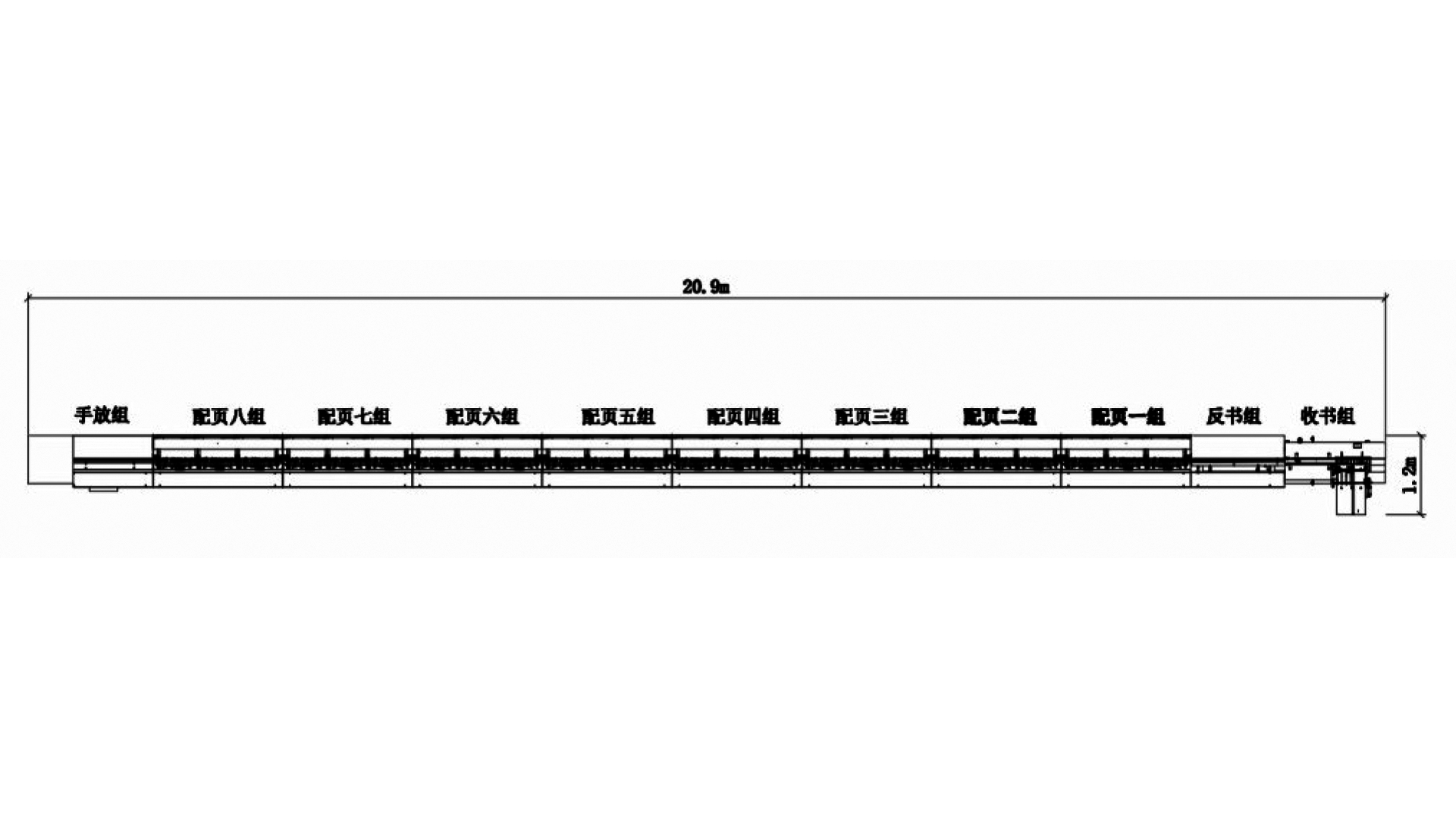

The machine is composed of one manual loading station, eight collating units, one book reversing unit, and one collection station.
Function and Features
- Intelligent Control System: Equipped with a 12-inch color touch screen on a standard swivel arm, the machine provides intuitive programming through an easy-to-navigate menu. This system controls the machine's operational functions and displays alarm messages, making it easy for operators to quickly troubleshoot issues. The interface is user-friendly and easy to learn.
- Advanced Sending Technology: Each collating station features sensors that monitor for issues like paper misalignment, empty feeds, jams, and conveyance problems. Indicator lights are displayed, making it simple for operators to quickly identify and resolve issues.
- Integrated Collating Function: The machine automatically collates different page numbers and stacks them for output, streamlining your workflow.
- Continuous Operation and Purge Functions: The machine offers continuous start-up and clear-out capabilities, enhancing operational efficiency.
- Frictionless Roller Design: Utilizes a roller-based feeding system, ensuring that books are vertically aligned within the machine without any friction on the surfaces.
Specification
| Collating Machine | |||||
|---|---|---|---|---|---|
| Max Operating Speed | 6000 RPH | ||||
| Number of Collated Pages | 12-48 Signatures | ||||
| Max Size (H x L) | 430 x 285 mm | ||||
| Min Size (H x L) | 148 x 130 mm | ||||
| Whole Machine | |||||
| Power Consumption | 19 KW | ||||
| Net Weight | 9000 Kg | ||||
| Air Consumption (External Supply) | Max 10 m3/min at 8 bar | ||||
| Standard Voltage | 380V/220V 50 Hz or 400V, 50Hz, 3 Phases | ||||
| Dimension (Length x Width x Height) | 20900 X 1200 X 1850mm (24 Stations) | ||||
| Book Size | L | H | S | ||
| Max Size | 320 | 430 | 1.5mm | ||
| Min Size | 95 | 148 | 0.5mm | ||
Please contact us for sample images!
