Notebook Making Machines

Introduction

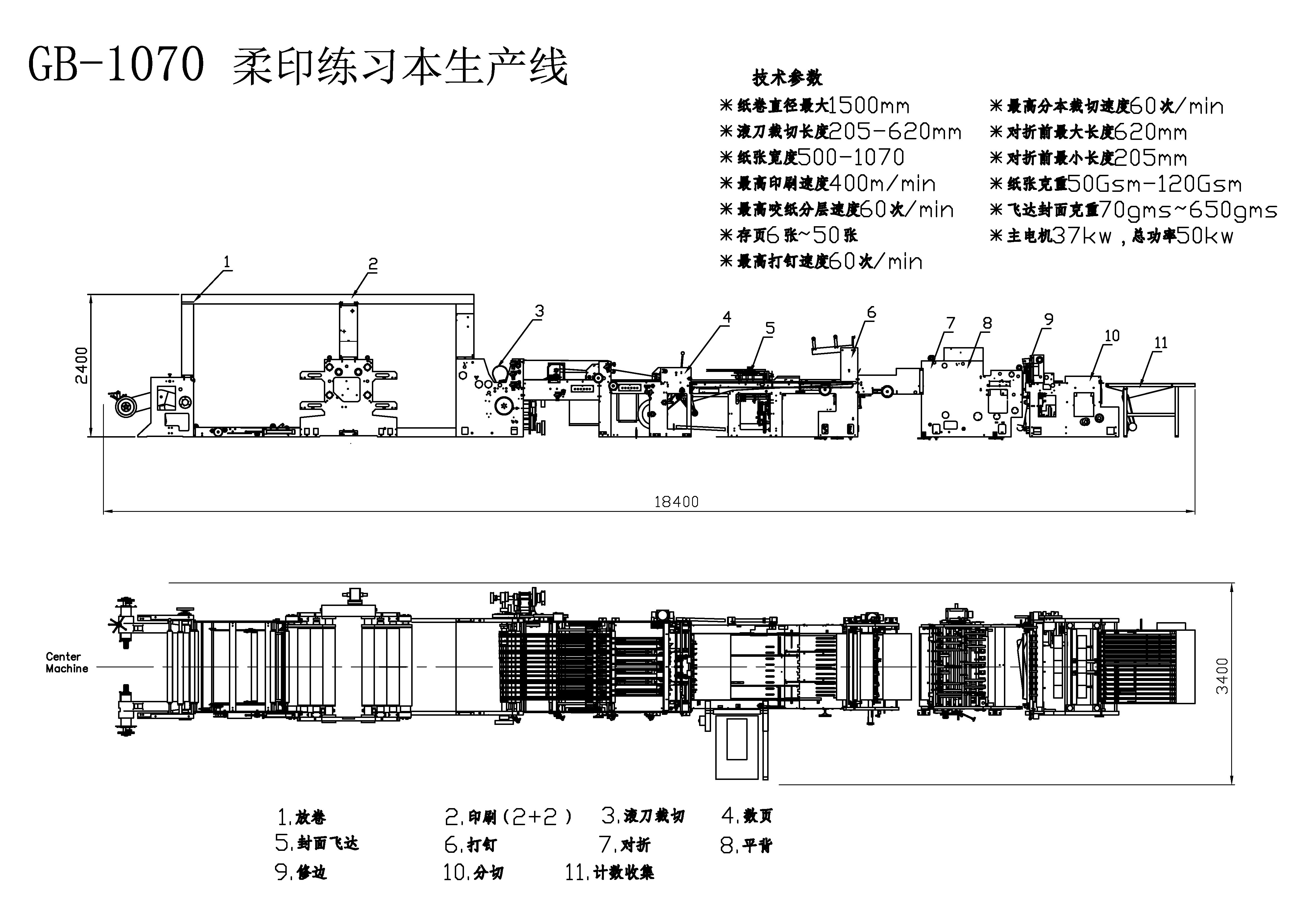

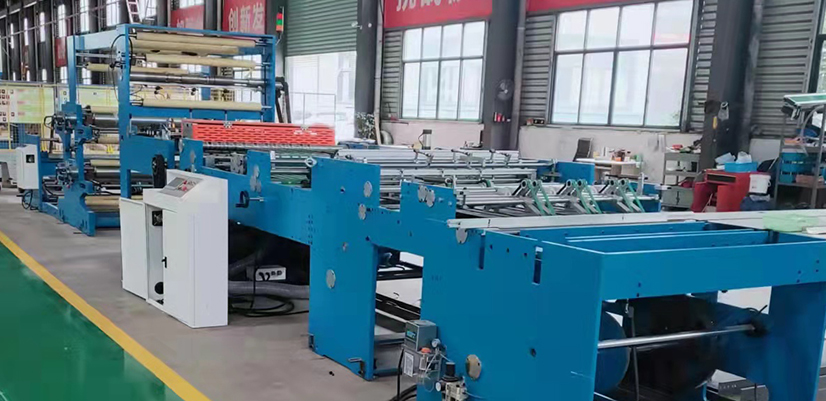

A fully automatic exercise book making machine, which consists of the following features and processes:

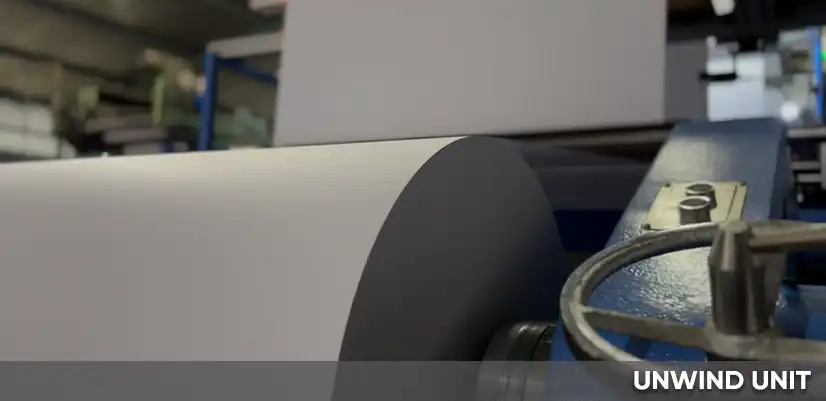

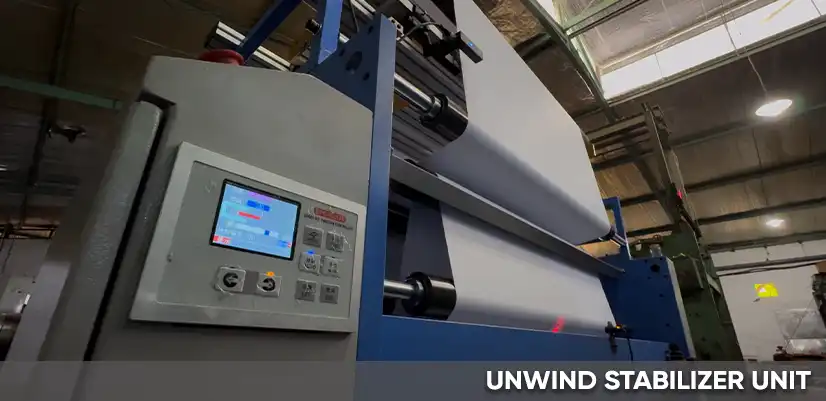

• Reel Unwinding Stand (Core Chuck and Cast Iron) with Control Web Guide Register
• Printing Unit (2+2 Color) Using Body Cast Iron, Gearbox Transmission

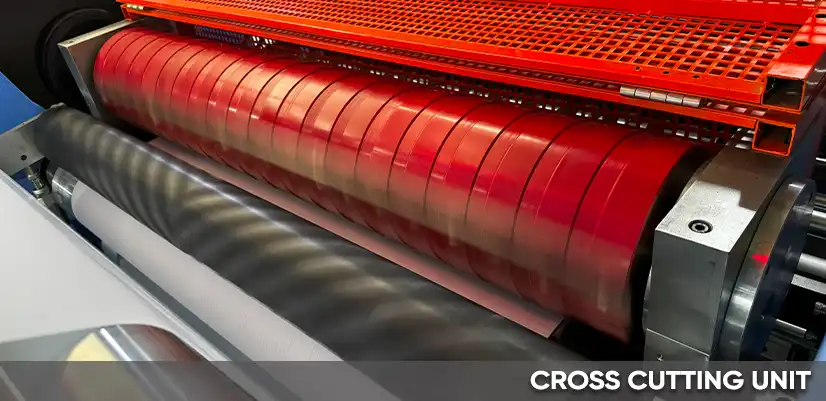

• Cross Cutting Unit
• Sheet Overlapping Unit

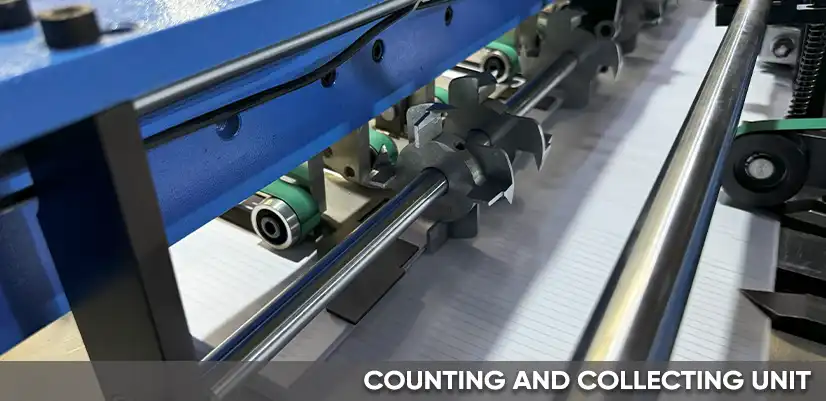

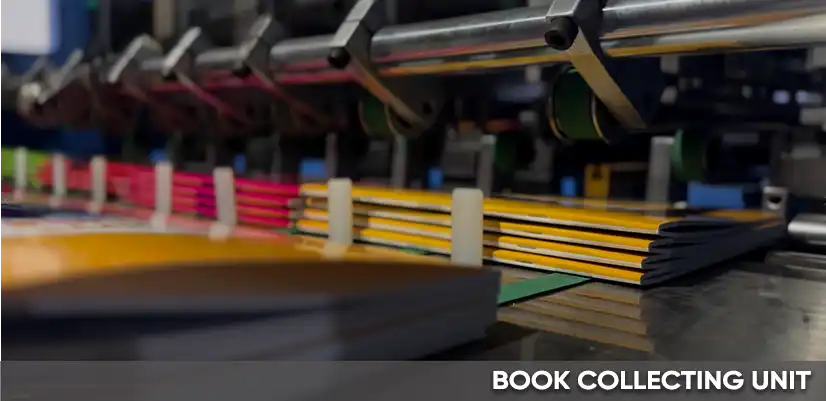

• Sheet Counting and Collating Unit

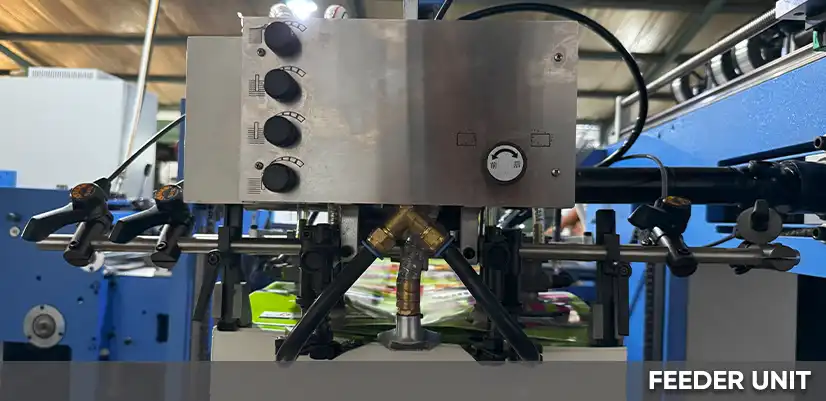

• One Unit Cover Feeder

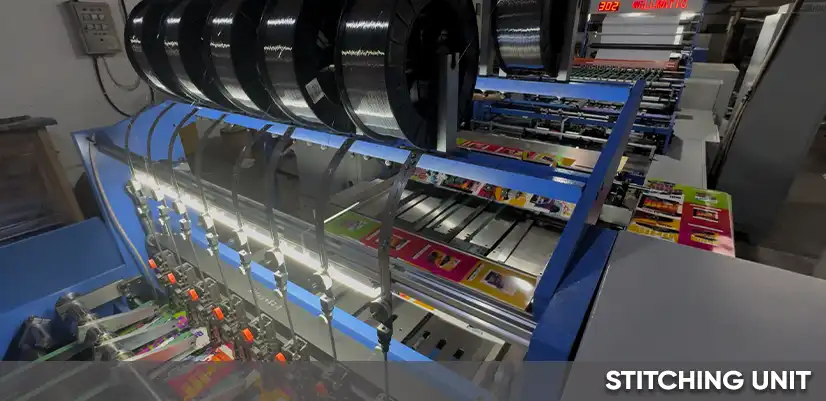

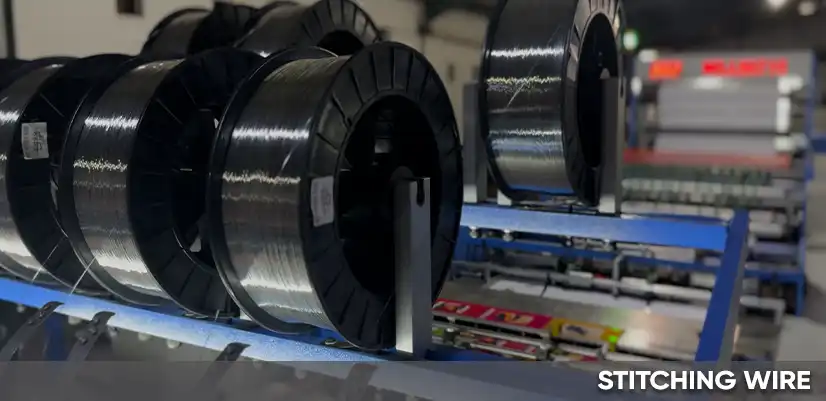

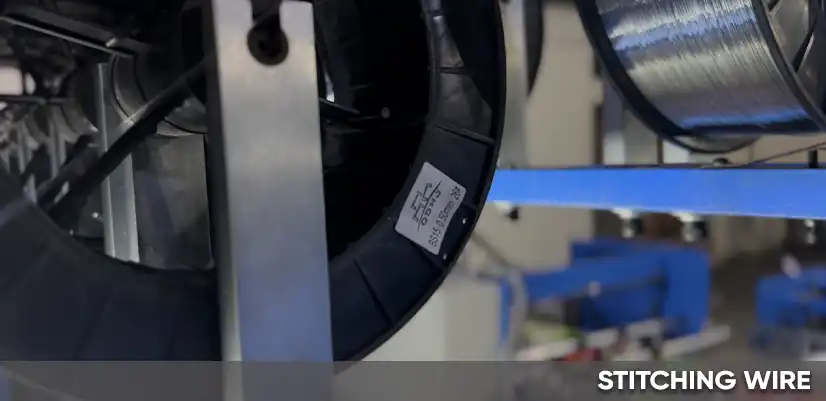

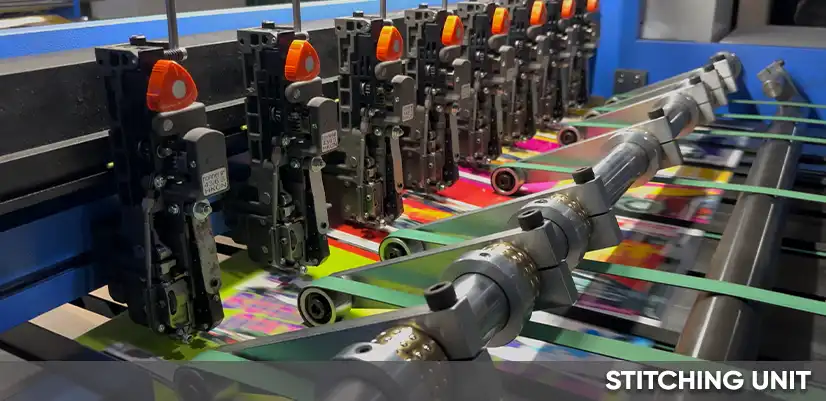

• Stitching Station Unit
• Folding Unit

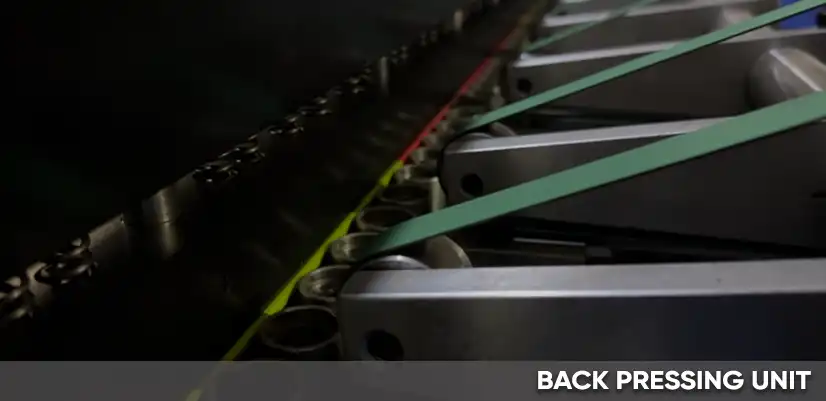

• Back Square Pressing Unit

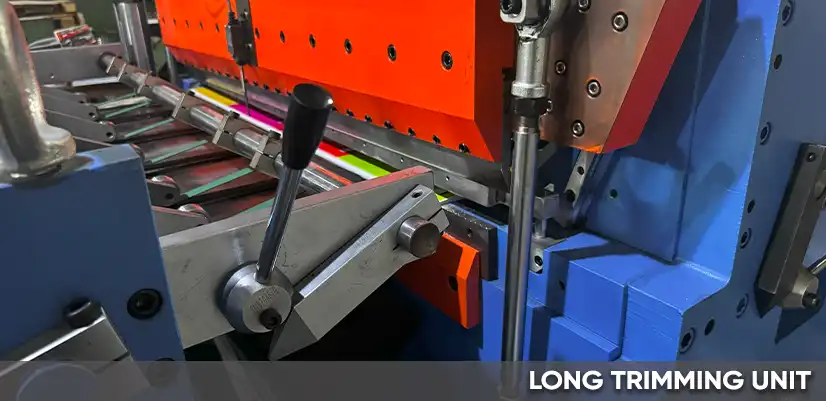

• Trimming Cutting Unit
• Delivery Counting Finished Goods
• Paper Waste Removal

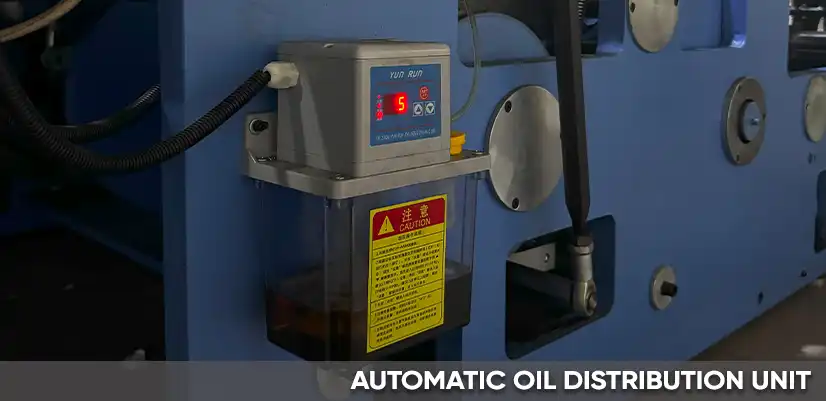

• Automatic Lubrication System Control
• Electric Panel Control

FEATURES

• Roller Printing for 4 pcs (according to customer requirement sizes)
• 1 Unit Feeder Cover
• 2 Sets of knives and all timing belt with one set of spare parts
• 1 Set in machine with additional 1 set toolbox change format
• 10 Pcs Hohner Stitching Head (Hohner 43/6 Made in Germany)
• PLC Siemens S7 electrical made in Germany
• Pneumatic equipment NSK and SKF Bearings Made in Japan
• GB-1070 design adopts 90% of the latest Bielomatik Germany technology
• To change size for the cutting – only need to change Gear Timing Pulley Belt

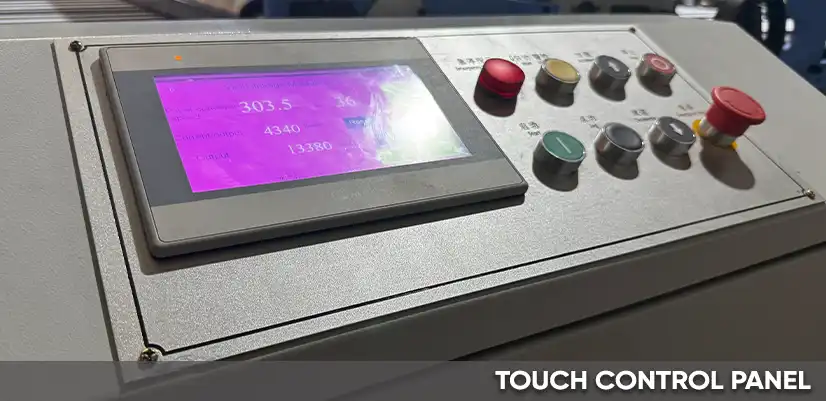

• To change the sheet count number – only need to change on touch screen monitor (servo motor)
• Has formatting feature for easy scaling adjustment

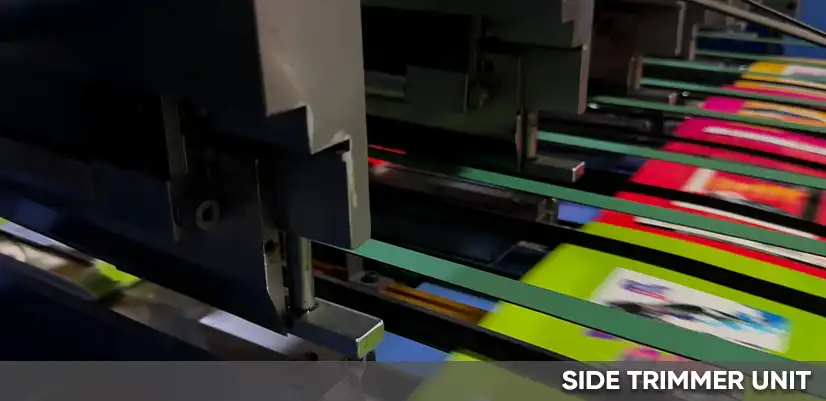

• Easier adjustment for side knife trimmers using scale
• Strong machine body frame for much stable operation

Specification
