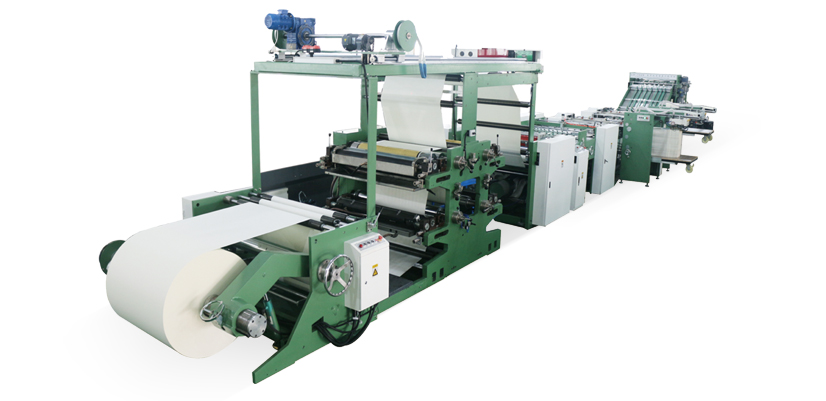

WM - 1050 P
REEL TO SHEET FLEXO PRINTING MACHINE WITH COVER FEEDER
Introduction
This equipment is the best equipment for the exercise book ruling machine with counting and cover feeder. The machine can use 4 to 5 reel papers within every 10 hours. It covers the printing and cover feeder production of sewing, spiral binding, wire saddle, stitching, gluing notebooks and exercise books. This machine utilizes advanced technologies menntioned below.
- Full Automatic
- Two people to operate only
- Capacity of 4 to 5 reel papers within every 10 hours
- Microcomputer controls
- Photoelectric tracking
- Touch screen operation
- Water ink flexographic printing
Features:
- Reel paper unwinding
- Sheet ruling and printing
- Slitting
- Collation
- Counting
- Paper cover insertion
- Product collection
Processes:
Specification
Product Model Type : WM - 1050 P
Web Max Diameter : 1200 mm
Web Width : 530-1050 mm
Paper Sheet Weight: 45-180 g
Max Printing Width : 1050 mm
Max Printing Speed : 300 m/min
Cover Insertion Speed : 60 times/min
Product Collection Height : 1800 mm
Total Power : 38 KW
Overal Dimensions : 15300x2500x2300 mm³
Web Max Diameter : 1200 mm
Web Width : 530-1050 mm
Paper Sheet Weight: 45-180 g
Max Printing Width : 1050 mm
Max Printing Speed : 300 m/min
Cover Insertion Speed : 60 times/min
Product Collection Height : 1800 mm
Total Power : 38 KW
Overal Dimensions : 15300x2500x2300 mm³
Ask us for sample images!
