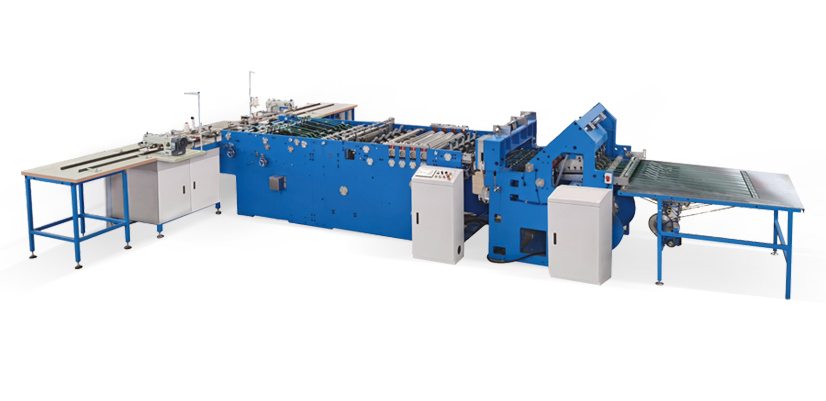

WM - 1050 BX
AUTOMATIC THREAD SEWN NOTEBOOK MACHINE
Introduction
This production assembly is the ideal choice of the mass production of thread sewing notebooks. This machine utilizes advanced technologies menntioned below.
- Five people to operate (Senior, assistant, 2 for raw material placement, and 1 collecting the finished products
- Microcomputer controls
- Photoelectric tracking
- Gas liquid interaction
- Touch screen operation
- Thread sewing
Features:
- A raw sheets desk
- 2 lines of sewing machines
- Auto thread cutting unit
- Major transport system
- A square spine pressing unit
- 3-side trimming unit
- Finished product collection
Equipped with:
Specification
Product Model Type : WM - 1050 BX
Web Length : 630-1050 mm
Web Width : 260-500 mm
Sheet Weight : 45-100 g
Max Raw Sheet Thickness : 4 mm
Max Sewing Needle Distance : 9mm/needle
Max Sewing Needle Speed : 1800 shot/min
Cross Cut Lenght Range : 100-300 mm
Vertical Cut Width Range : 125-300 mm
Main Motor Power : 5.5 KW
Total Power : 7.75 KW
Overal Dimensions : 9000x5700x1600 mm³
Machine Weight : 6 T
Web Length : 630-1050 mm
Web Width : 260-500 mm
Sheet Weight : 45-100 g
Max Raw Sheet Thickness : 4 mm
Max Sewing Needle Distance : 9mm/needle
Max Sewing Needle Speed : 1800 shot/min
Cross Cut Lenght Range : 100-300 mm
Vertical Cut Width Range : 125-300 mm
Main Motor Power : 5.5 KW
Total Power : 7.75 KW
Overal Dimensions : 9000x5700x1600 mm³
Machine Weight : 6 T
Ask us for sample pictures!
