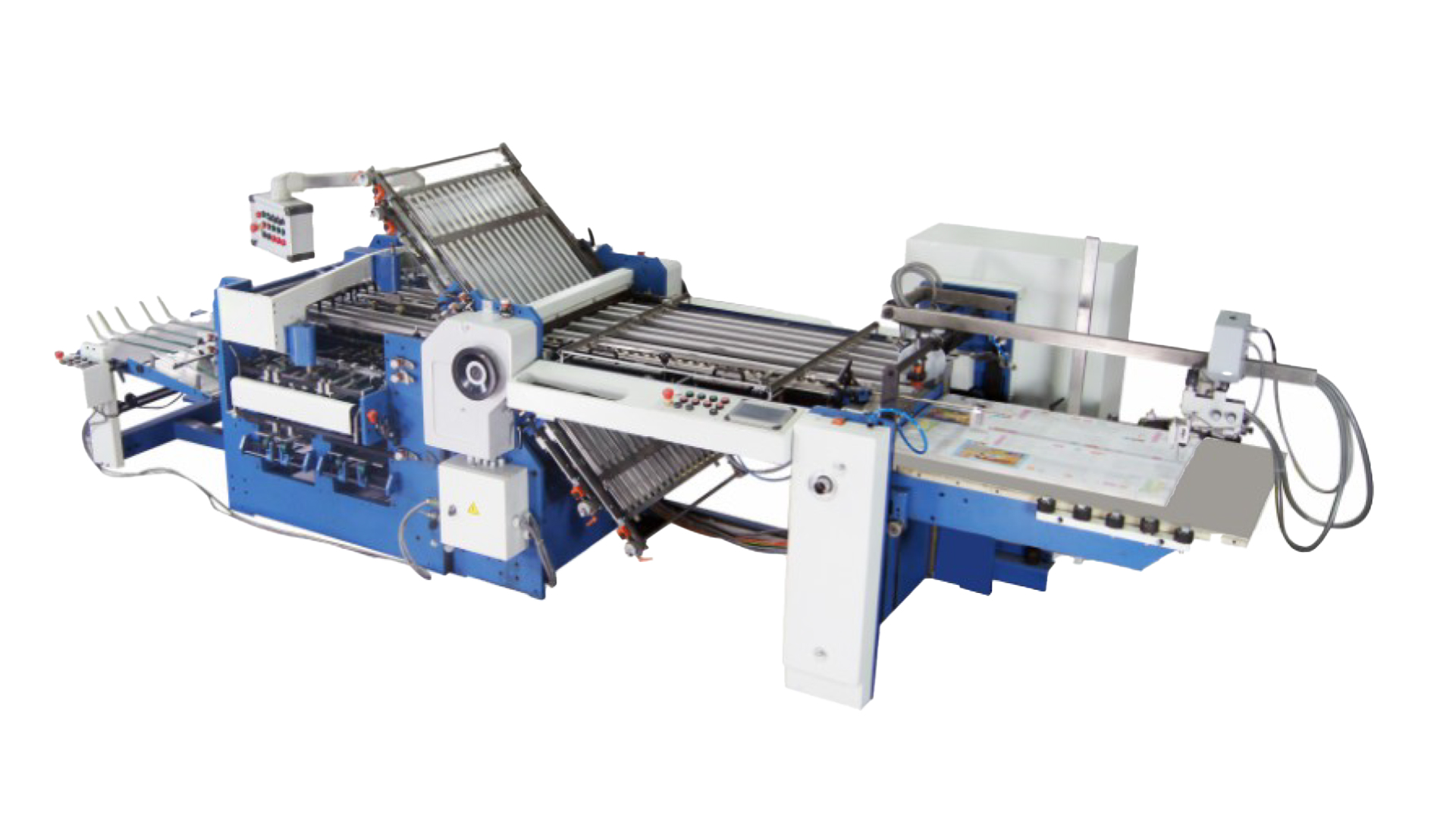

AUSCP ZYHD780A-T
DIGITAL AUTOMATIC FOLDING AND BOOK SEWING MACHINE
Introduction
The machine is composed of a paper tray feeding mechanism, 4 fence folds, 3 independent servo-controlled folding knives, and a collating machine. Designed for folding single sheets of paper, including booklets, brochures, manuals, letters, etc. The machine features a backpack-style paper-feeding mechanism, 4 fences, and 3 knife hybrids for folding. Folds include parallel, accordion, and roll folds for fancy-only folding, and vertical mixed quadruple folding for fence and knife hybrid folding. The sheets are collected by a collator. The machine is configured for 4 fence and 3 knife 32-page normal or reverse folding.
OPTIONAL EQUIPMENT
- Compatible with LSZ460A Vertical Pressing Paper Collator and LSZK360B Vertical Paper Bundler.
FEATURES AND FUNCTION
- Intelligent Control System: Utilizes imported electrical components and control systems, including a PLC programmable controller and frequency-variable speed control. The folding knives are precisely controlled by imported servo motors, and maintenance is straightforward.
- Fault Detection and Protection: Double-sheet detection during paper feeding and automatic stoppage in case of jams in the fences or knives.
- High-Speed New Feeder: The newly developed feeder has a high and stable paper suction frequency.
- Threaded Folding Roller: The folding rollers are made of imported polyurethane and special material steel, comparable in durability to imported folding rollers. They provide 75% more gripping area than traditional straight rollers.
- 32-Page Normal and Reverse Folding: The machine supports both 32-page normal and reverse folding and can resolve layout issues.
- On-Demand Lubrication: The central oil lubrication system is equipped with timing and quantification, and low oil pressure triggers an alarm.
- Paper Transportation: Three-hole wide polyurethane suction wheels carry the paper to the feeder board, where ideal alignment takes place.
- Sheet Separation: Vacuum suction wheels control the paper feed, with ball rolling for paper alignment.
- Punching and Creasing: The machine supports punching and creasing as needed during the folding process.
- Counting Function: Photoelectric switches are used for cumulative and batch counting.
- Scales and Digital Displays: Each adjustable part of the machine has corresponding scales and digital displays.
- Selectable Fence Folding: The fence board has a swing-type paper corner, allowing for easy selection of fold types like parallel, accordion, and roll folds.
- Adjustment Data Display: Scales are set at all machine adjustment points to shorten adjustment time.
- Automatic Collation: Upon completion of folding, the booklets are automatically and sequentially collated.

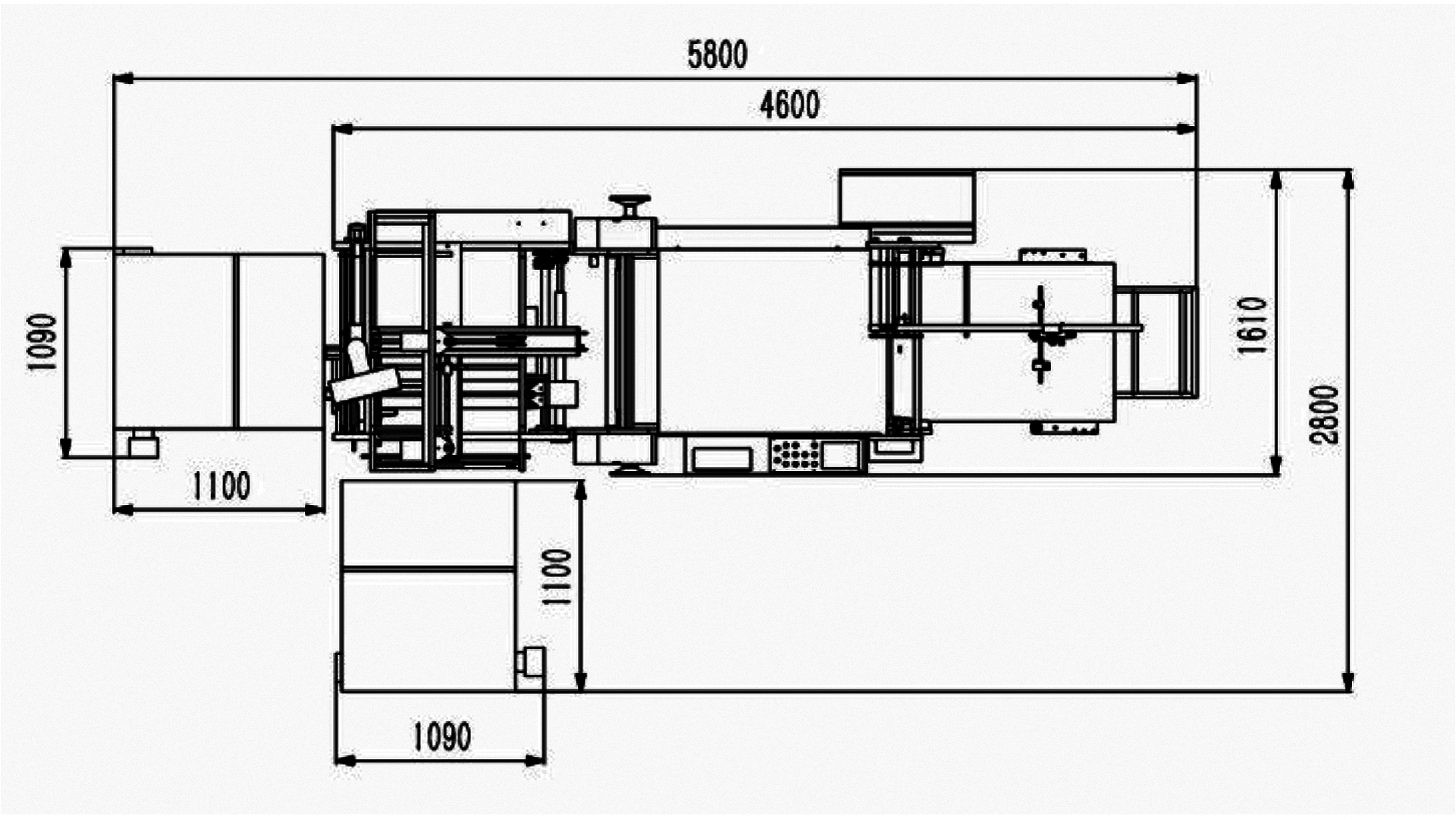

Specification
| Max Folding Paper Size | 780 x 1160 mm | |
|---|---|---|
| Min. Sheet Size | ||
| 1-Buckle Folding | 150 x 200 mm | |
| 1-Buckle 1-Knife Folding | 200 x 300 mm | |
| 1-Buckle 2-Knife Folding | 300 x 400 mm | |
| 1-Buckle 3-Knife Folding | 390 x 540 mm | |
| Sheet Thickness | 40 – 200 g/m | |
| Roll Speed Range | 650 mm | |
| Max Height of Rotary Feeder | 55 – 645 mm | |
| Buckle Quantity | 4 Sets | |
| Max Lines of Vertical Folding | 3 Times | |
| Roll Speed Range | 75 – 210 m/min | |
| Max Working Frequency of Folding Knife | 350 Stroke/min | |
| Folding Speed | ||
| 210 x 297 Parallel One Folding
27.000 sheet/hour |
||
| 540 x 780 Parallel One Folding
27.000 sheet/hour |
||
| Power Consumption | 7.34 Kw | |
| Net Weight | 2500 Kg | |
| Power Supply Deviation | ±1 Hz ±10%V | |
| Control Power Supply | 220V AC 24V DC | |
| Standart Voltage | 380V, 50Hz | |
